A facile synthesis and study of photocatalytic properties of magnetic CaFe2O4-CeO2 nanocomposites applicable for separation of toxic azo dyes

Document Type : Research Paper


Department of Science, Arak University of Technology, Arak, Iran



At the first step calcium ferrite nanostructures were synthesized via a facile precipitation method in the presence of green and compatible capping agent such as starch, poly vinyl pyrrolidone and glucose in solvent of water. Then cerium oxide nanoparticles and CaFe2O4-CeO2 nanocomposites was made by a fast chemical procedure. The effect of temperature in nanoparticles and nanocomposites concentration and precipitating agent on the morphology and particle size of the products was investigated. The prepared products were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), and Fourier transform infrared (FT-IR) spectroscopy. Also the crystalline size of nanoparticles was calculated by Debye-Scherrer formula. Vibrating sample magnetometer (VSM) shows the ferromagnetic property of the ferrite nanostructures. The photocatalytic behaviour of CaFe2O4-CeO2 nanocomposites was evaluated using the degradation of three azo dyes (acid black, acid violet and acid blue) under ultraviolet light irradiation. The results introduce a nanocomposite with applicable magnetic and photocatalytic performance.



Aromatic compounds for examples azo dyes, pesticides and herbicides are widely used in industries and daily life, and are the principal pollutants and effluents discharge by companies. These organic pollutants distress the environment and human health due to their toxicity carcinogenicity and hazardous effect [1–3]. So the purification of these noxious organic compounds from the surrounding has received extreme research to preserve human health and environmental safety [4].

Conventional techniques such as precipitation, adsorption, reverse osmosis, oxidation, combustion, and biological methods were used so far for the purification of organic waste effluents. But they lose their importance due to some drawbacks such as high cost, ineffectiveness, also they cannot destroy the organic dye molecules but just phase transfer the organic pollutions from water to another phase [5–8]. Photo-catalyst activity is an applicable method for purification of wastewater in the presence of semiconductor and it is an suitable option for the refining of organic pollutants [9,10]. Magnetic nanoparticles are great interest in science especially application in electronic inductors, transformers, also were used as a component of radar absorbing materials and etc [11,12].

CaFe2O4 easily forms and crystallizes in spinel structure and hence it would be interesting to study dielectrical and magnetic properties to assess its suitability for various applications. In addition, it is important to synthesize CaFe2O4 compound because both the constituent metal cations Ca2+ & Fe3+ have zero crystal field stabilization energy for both tetrahedral and octahedral sites. CaFe2O4 crystallizes in orthorhombic structure with space group Pnma. Atomic arrangement is more compact in orthorhombic unit cell and hence the coordination around the cations was higher than that in the spinel [13-15]. For spinel ferrites synthesis many bottom up protocols such as co-precipitation, hydrothermal and sol-gel methods were popularly followed [13-16].

Cerium oxide one of the elements in lanthanide series is an excellent semiconducting material with a wide band gap which is familiar for its catalytic properties [17]. It is commonly used for enhancing efficiency or support in industrial catalytic processes due to its oxygen storage capacity [18].

Cerium has the capacity to switch over oxidation states (3+ and 4+) very easily and it is used in different usages for example catalytic converters, solid oxide fuel cells, oxygen buffers and corrosion protection [19,20]. The addition of metal oxide to CeO2 significantly modifies catalyst activity, the oxygen storage capacity and surface area [21].

In this work cerium oxide and CaFe2O4-CeO2 were made by a fast chemical procedure via low cost precursor materials. The photocatalytic efficiency of CaFe2O4-CeO2 nanocomposites was evaluated using the decomposition of three azo dyes (acid black, acid violet and acid blue) under ultraviolet light irradiation. The results illustrate a nanocomposite with appropriate magnetic and photocatalytic application.


Room temperature magnetic properties were investigated using vibrating sample magnetometer (VSM) device, made by Meghnatis Kavir Kashan Company (Iran) in an applied magnetic field sweeping between ±10000 Oe. XRD patterns were recorded by a Philips, X-ray diffractometer using Ni-filtered CuKα radiation. SEM images were obtained using a KYKY instrument model EM-3200. Prior to taking images, the samples were coated by a very thin layer of Pt (using a BAL-TEC SCD 005 sputter coater) to make the sample surface conducting and prevent charge accumulation, and obtaining a better contrast.  Fe(NO3)3 9H2O, Ca(NO3)2.4H2O, Ce(SO4)2, starch, glucose, gelatin, salicylic acid, poly vinyl pyrrolidone and  NaOH were purchased from Merck or Aldrich and all the chemicals were used as received without further purifications


Synthesis of CaFe2O4 nanoparticles

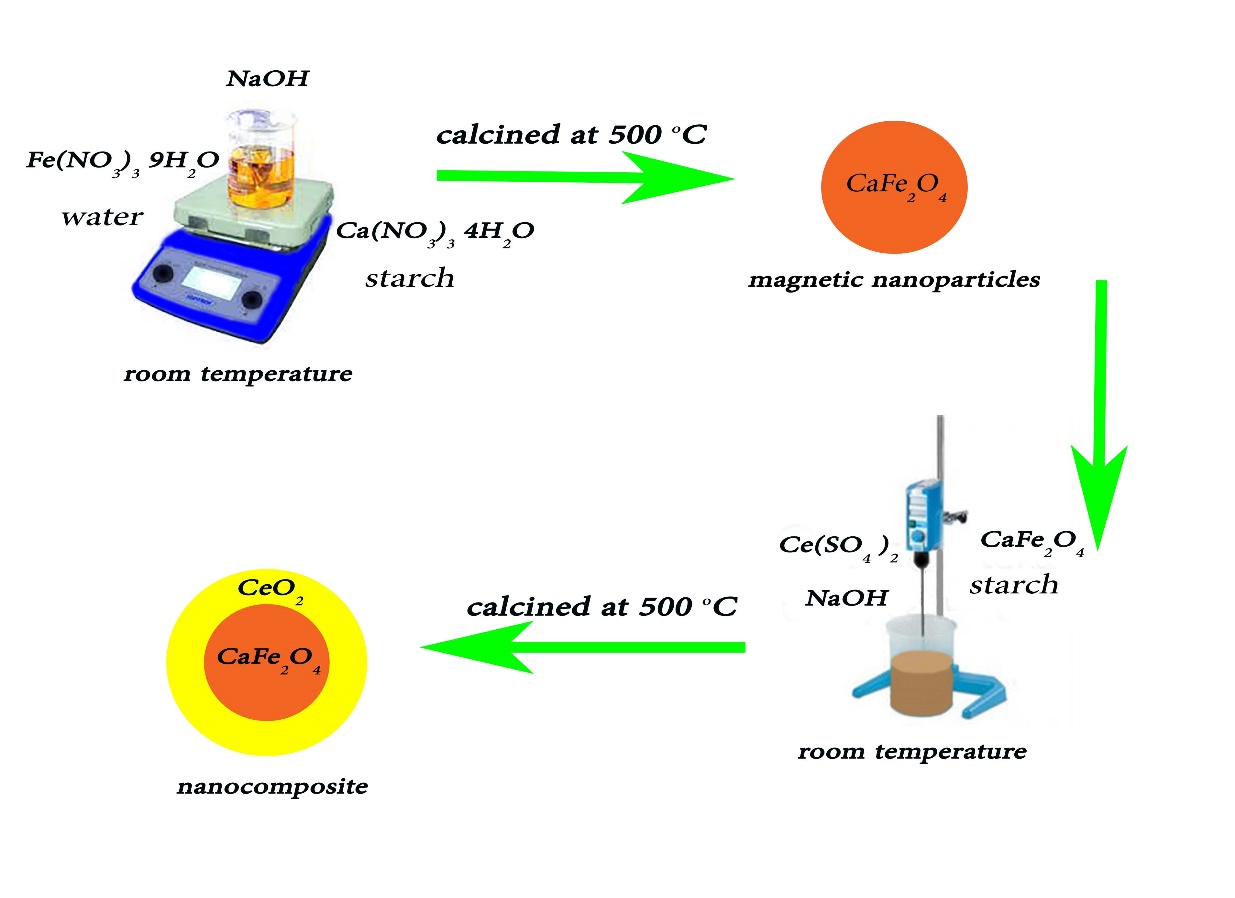

0.68 g of Fe(NO3)3 9H2O and 0.2 g of Ca(NO3)2 4H2O were dissolved in 200 ml of deionized water. 10 ml of NaOH solution (1M) was then slowly added to the solution until reaching pH to around 10. A brown precipitate was then centrifuged and rinsed with distilled water. Finally the obtained precipitate was calcinated at 80-500ºC and its colour goes from brown to black. Fig.1 shows the schematic diagram for experimental setup for nanoparticle and nanocomposite preparation used in the precipitation procedure. These conditions were chosen as a basic reaction in this work and effect of various parameters was investigated on the blank reaction.

Synthesis of CaFe2O4-CeO2 nanocomposite

0.1 g of CaFe2O4 was dispersed in 200 ml of deionized water by ultrasonic waves (150 W, 8min). Then 0.4 g of Ce(SO4)2 was added. NaOH solution was slowly added to the aqueous solution until reaching pH to the 10 and was stirred for 30 minutes.

Photo-catalytic degradation process

0.1 g of catalyst was applied for degradation of 10 ml solution. The solution was mixed by a magnet stirrer for 1 hour in darkness to determine the adsorption of the dye by catalyst and better availability of the surface. The solution was irradiated by 8W UV lamp which was placed in a quartz pipe in the middle of reactor. It was turned on after 2 hour stirring the solution and sampling (about 10 ml) was done every 30 min. The samples were filtered, centrifuged and their concentration was determined by UV-Visible spectrometry.

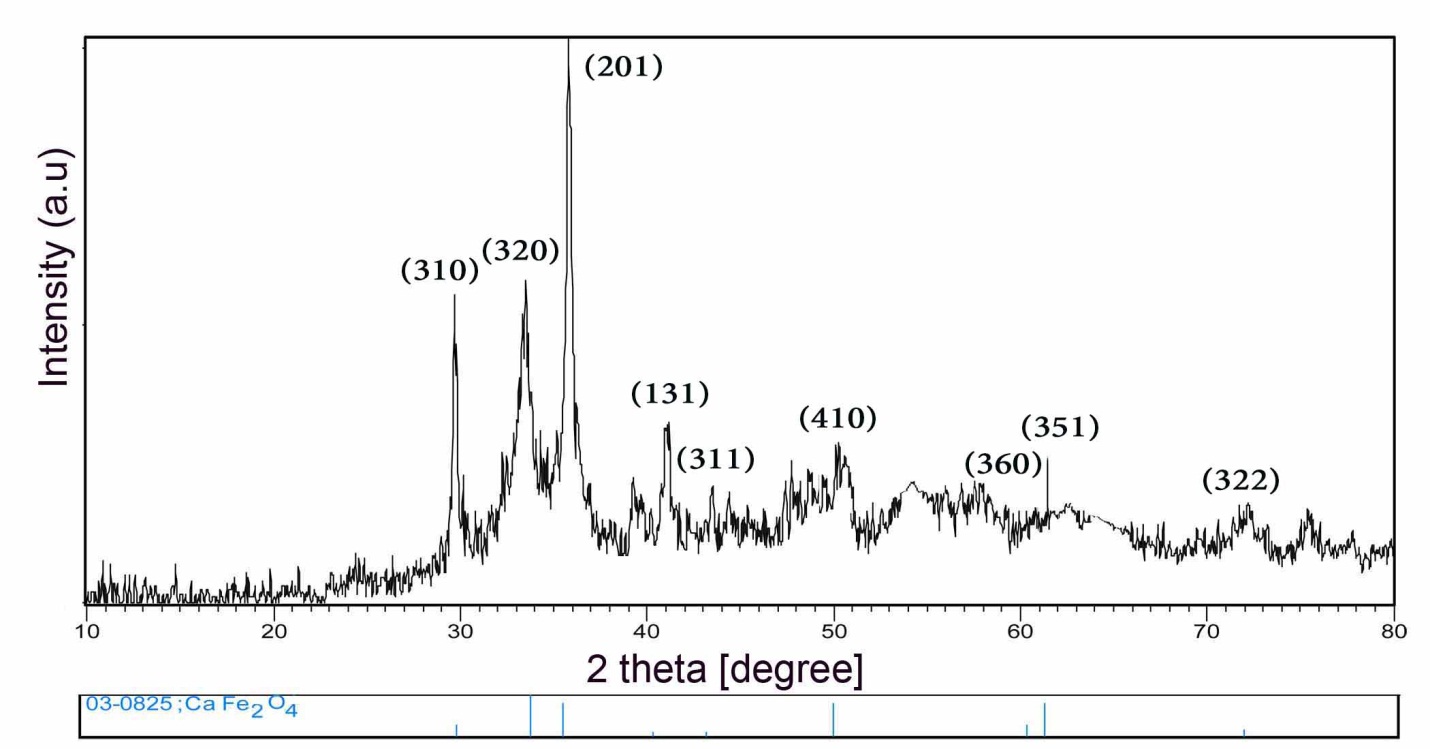

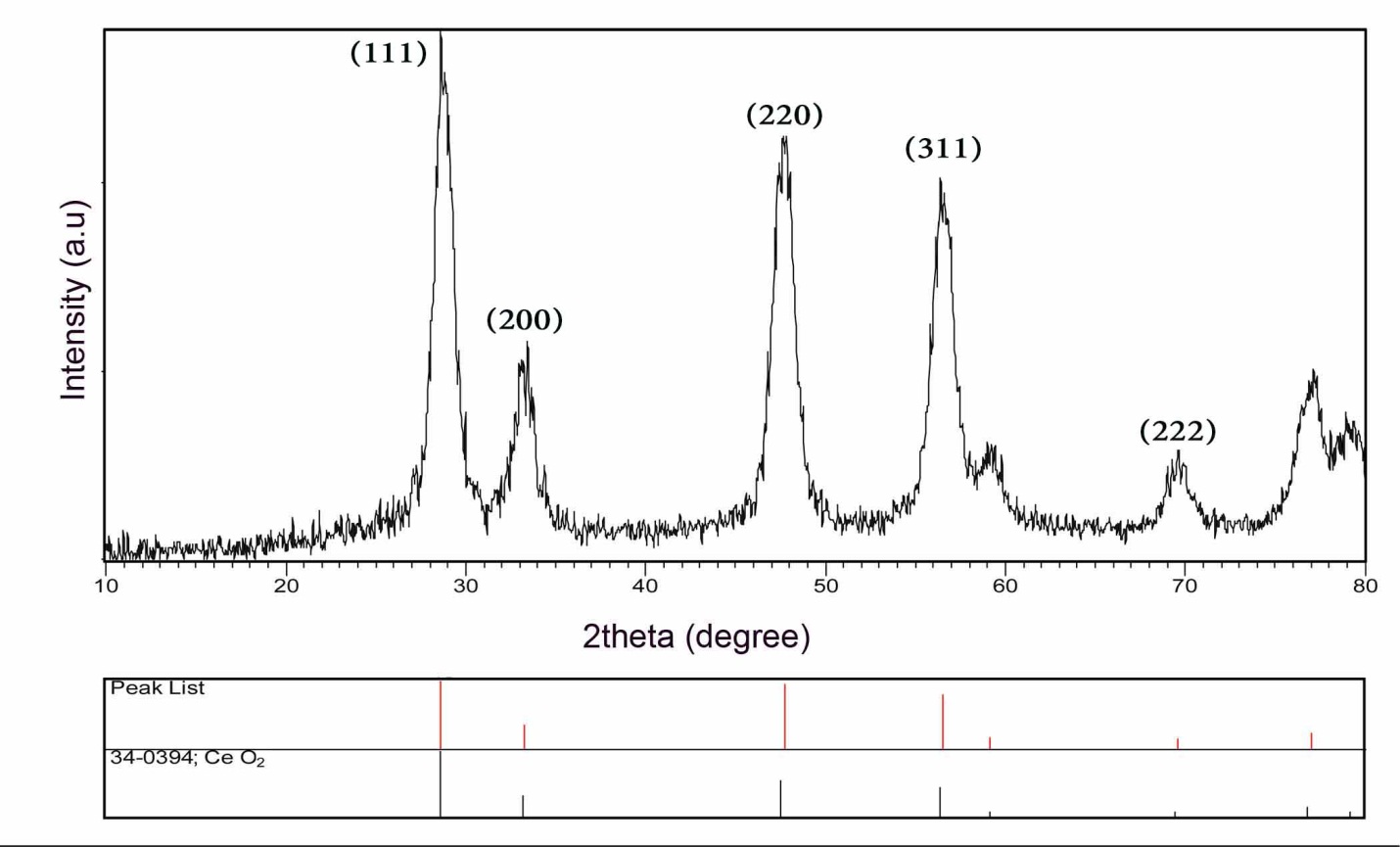

The crystallinity and composition of the CaFe2O4 nanoparticles was investigated. Fig. 2 shows XRD pattern of CaFe2O4 that reveals the typical diffraction pattern of pure orthorhombic phase (JCPDS No: 03-0825) with Pnma space group which is consistent with pure calcium ferrite. The crystallite phase of the CeO2 nanoparticle was determined in Fig. 3. The XRD pattern of CeO2 nanoparticles shows cubic phase (JCPDS No.: 34-0394) with Fm-3m space group which has agreement with pure CeO2.

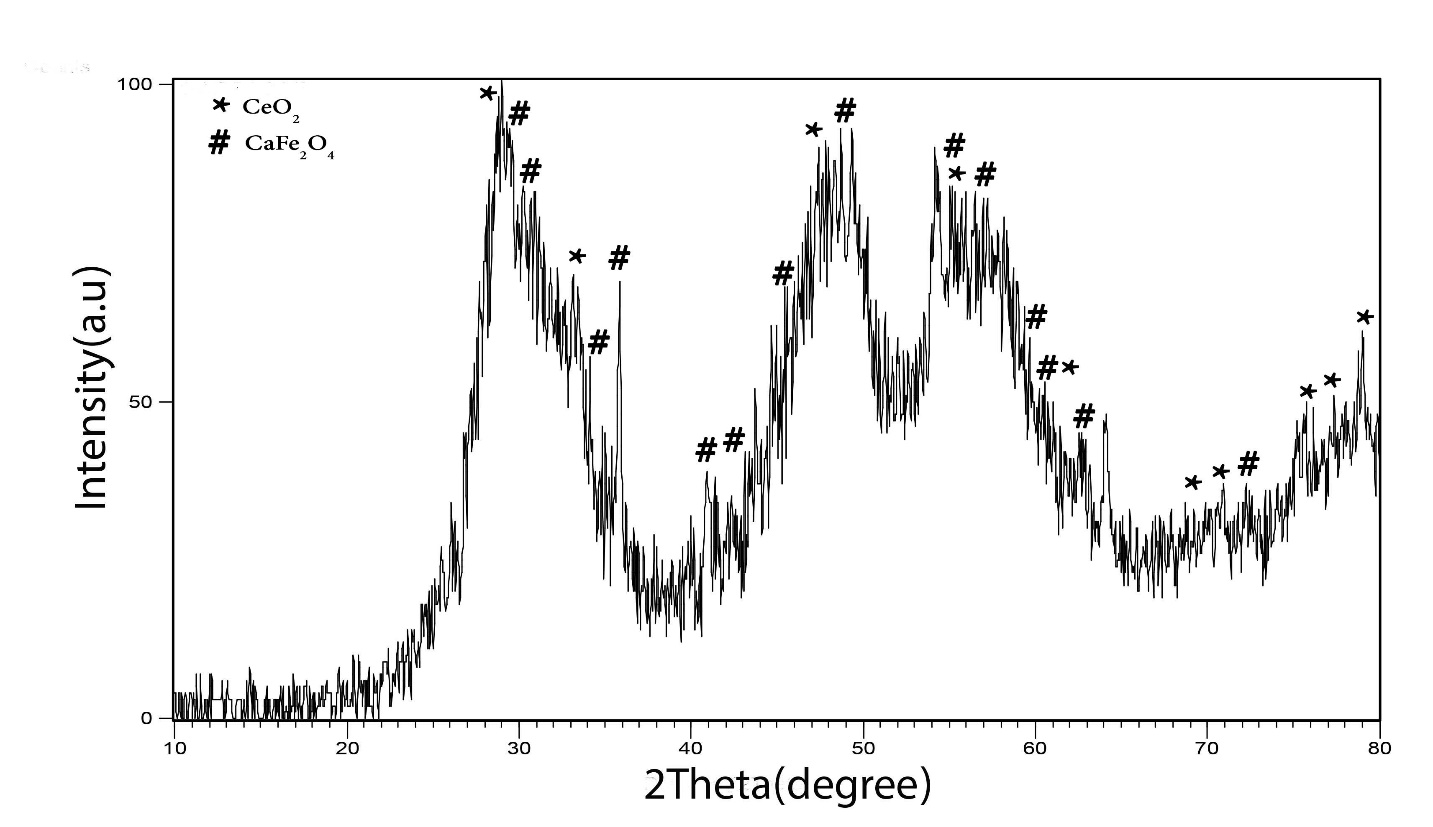

The composition of the CaFe2O4-CeO2 nanocomposite was also investigated. Presence of both orthorhombic phase (JCPDS No.: 03-0825) and pure cubic phase (JCPDS No.: 34-0394) was confirmed and is illustrated in Fig. 4.

The crystalline sizes from Scherrer equation, Dc=0.9λ/βCosθ, was calculated, where β is the width of the observed diffraction peak at its half maximum intensity (FWHM), and λ is the X-ray wavelength (CuKα radiation, equals to 0.154 nm).The average crystalline size for CaFe2O4, CeO2 and CaFe2O4-CeO2 nanoparticles were found to be about 19 , 21 and 29nm respectively.

Scanning electron microscopy was employed for estimation of morphology and particle size of the products. Fig. 5-a illustrate SEM images of the as-synthesized CaFe2O4 nanoparticles with glucose obtained at room temperature in 100 ml of solvent. The particle size and magnetic properties can be easily controlled by changing in precursors. The balance between nucleation and growth rates, determines final particle size so the morphology depends on the preparation conditions. The average particle size is about 58 nm.

Fig. 5-b show SEM images of the calcium ferrite nanoparticles prepared with starch surfactant. According to scanning electron microscopy images the average particle size is found to be around 54 nm.

SEM images of calcium ferrite nanoparticles with poly vinyl pyrrolidone as neutral capping agent are illustrated in Fig. 5-c. Images approve the mean particle size is about 40 nm.

Fig. 5-d show SEM images of the calcium ferrite nanoparticles obtained applying gelatin surfactant calcinated at 500 °C. According to scanning electron microscopy images the average particle size is found to be around 41 nm.

Fig. 6-a show SEM images of the calcium ferrite nanoparticles obtained in the presence of salicylic acid surfactant calcinated at 500 °C. Related to SEM images the mediocre particle size is about 36nm.

The effect of another precipitating agent on the morphology and size of the ferrites was examined Fig. 6-b show SEM images of the calcium ferrite obtained using   potassium hydroxide as a precipitating agent. Diameter of the magnetic products is less than 51 nm.

 The effect of both temperature and capping agent on the size of the products was also examined. Fig. 6-c illustrate SEM images of calcium ferrite nanoparticles with starch coating at calcination temperature about 500° C. The mediocre size was estimated to be around 45 nm. The results confirmed that all synthesized nanostructures were formed from nanoparticles with average diameter size less than 100 nm. Fig. 6-d illustrates the effect of lower concentration on the calcium ferrite with starch coating, the obtained product in 200ml (instead of 100 ml) of solvent approve formation of nanoparticles. The average particle size of diluted product is about 45 nm.

Fig. 7 shows the calcium ferrite images prepared by the hydrothermal method. Scanning electron microscopy images verify dimensions are less than 47 nm.

SEM images of the cerium dioxide nanoparticles prepared at room temperature without calcination are shown in Figs.8-a-b. The average particle size is about 49 nm. And SEM images of the CeO2 nanoparticles that calcined at 500°C are illustrated in the Figs.8-c-d.  Average dimensions of both products are calculated to be around 41 nm.

Fig. 9. illustrate SEM images of the as-synthesized CaFe2O4-CeO2 obtained at 80°C in 200ml of solvent. That result confirms nanocomposites with average size around 45 nm were obtained.

Fig. 10-a shows the FT-IR spectrum of the as-prepared CaFe2O4 nanoparticles at 500 °C, the absorptions band at 314, 442 and 557cm-1 are assigned to the stretching mode of Fe-O and Ca-O bonds. The spectrum exhibits broad absorption peak around 3423cm−1, corresponding to the stretching mode of O-H group of hydroxyl group and the weak band near 1467 cm−1 is assigned to H–O–H bending vibration mode due to the adsorption of moisture on the surface of nanoparticles.

FT-IR spectrum of the CeO2 nanoparticle at 500 °C is shown in Fig. 10-b. The very intense bands between 1384 and 1459 cm−1 are attributed to Ce–O bonds. The spectrum exhibits broad absorption peak around 3435 cm−1, corresponding to the stretching mode of hydroxyl group which adsorbed on the surface of nanostructures.

Fig. 10-c illustrates the FT-IR spectrum of the as-prepared CaFe2O4-CeO2 nanocomposites at 500 °C. The hydrothermally prepared CeO2 nanoparticles contain small amounts of carbonate ions and the absorption peak was aroused at 1372cm-1. Broad absorption around 3383 cm−1 is corresponding to the O-H group. All absorptions band at 727 and 542 cm-1 are assigned to the stretching mode of Ca-O and Ce-O bonds.

Magnetic property of the room prepared magnetic sample was studied using VSM instrument, and the obtained is shown in Fig. 11. The result indicates that, the sample exhibit ferromagnetic property. A saturation magnetization around 0.88 emu/g, and coercivity about 41.5 Oe have been achieved.

Fig. 12 shows magnetization curve of CaFe2O4 that calcined at 500 °C. Also exhibits also ferromagnetic behaviour with a coercivity of about 35 Oe and saturation magnetization of 2.5 emu/g.

Fig. 13 illustrates magnetization curve of CaFe2O4-CeO2 that also exhibits also ferromagnetic behaviour with a coercivity of about 23 Oe and saturation magnetization of 0.28 emu/g.

The magnetic property of the prepared nanocomposites is an essential characteristic of a heterogeneous nanocomposite since materials with this magnetic behaviour have low tendency in inter-particles agglomeration caused by dipole-dipole interaction in comparison with ferromagnetic nanocomposites.

Acid black, acid violet and acid blue as typical organic pollutants were employed as targets because of the relative stability of their molecular structure. UV-Vis absorption of these azo dyes under ultra violet in the presence of CaFe2O4- CeO2 are shown inFig 14. The as-prepared nanocomposite has the potential to be applied to improve environmental problems associated with organic and toxic water pollutants.

 Maximum absorption peaks (λmax) of organic dyes that were used for degradation under UV light are prepared from UV-vis absorption spectra and were confirmed by scientific literature. Acid black, acid violet and acid blue were degraded 60, 80 and 90min respectively by CaFe2O4-CeO2 nanocomposite. As time increase dyes are adsorbed on the nanoparticles catalyst, until the absorption peaks (λmax) of acid black, and acid blue decrease and vanish around 90 min (Fig. 14). The dyes concentration decreased rapidly with increasing UV-irradiation time organic dyes decompose to carbon dioxide, water and other less toxic or nontoxic residuals The changes in the concentration of dye are illustrated in Fig.15  [22-24].



In conclusion, synthesis, characterization, and photocatalytic activity of CaFe2O4, CeO2 nanoparticles and CaFe2O4-CeO2 nanocomposite were reported. VSM  hysteresis loop confirmed that ferrite nanoparticles and nanocomposite exhibit ferromagnetic behaviour. The photocatalytic behaviour of CaFe2O4-CeO2 nanocomposite was investigated by the degradation of acid black, acid blue, and acid violetazo dyes under UV light irradiation. The results indicate that precipitation method is a suitable method for preparation of CaFe2O4-CeO2 nanocomposites as a candidate for photocatalytic applications to digration azo dyes.
