Effect of alkali strength on the hydrothermal growth of photoactive TiO2 nanowires

Document Type : Research Paper


1 Department of Pure and Industrial Chemistry, Bayero University Kano, 700241 Kano, Kano State, Nigeria

2 Department of Chemistry, Kano University of Science and Technology Wudil, Kano, Nigeria

3 Department of Chemistry, Faculty of Science, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor D.E., Malaysia

4 Institute of Advanced Technology, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor D.E., Malaysia



Titanium dioxide nanowires have been prepared by the alkali hydrothermal treatment of TiO2 nanoparticles in presence of different hydroxides and characterized using transmission electron microscopy (TEM), scanning electron microscopy (SEM), energy dispersive x-ray (EDX), N2 adsorption-desorption measurements, powder x-ray diffraction (XRD) and UV-Vis spectroscopy. Interestingly, only the strong bases (NaOH and KOH) formed mainly anatase titanium dioxide nanowires with the evident collapse of definitive (110) rutile XRD peak. The KOH-based titanium oxide nanowires exhibited comparatively low diameter (∼5 nm), high surface area (228.34 m2/g), and low band gap energy (2.90 eV), and showed the most remarkable photocatalytic degradation (98.87 %). However, the NH4OH-based titanium dioxides were nanoparticles having insignificantly modified morphology and least photocatalytic efficiency. The effect of operating variables on the degradation of aqueous methylene blue (MB) over the obtained alkali hydrothermal TiO2 was studied using response surface methodology, based on a bivariate central composite design (CCD) and optimized numerically.



Nanostructured materials exhibit a wide variety of unique properties for application in array of scientific and technological developments such as photocatalysis, sensors, voltaic cells, shielding interference in communication field, reducing electromagnetic radiation and disinfection [1-3]. In photocatalysis, light with sufficient energy causes the formation of conduction band electron and valence band hole (charge carriers) which serve as mini-microreactors for photocatalytic reduction and oxidation. Over the decades, the photo-oxidative degradation of environmentally recalcitrant compounds such as synthetic organic dyes over nanostructured materials has attracted enormous interest. Apart from nano-TiO2 which is currently much referred nano-photocatalyst, a high number of other photoresponsive nanomaterials have been described [4,5]. One advantage immediately obvious from these materials is that they can shorten charge carrier transfer distance due to their smaller particle sizes and larger surface areas which ultimately translates into enhanced photocatalytic activity [6].

Titanium dioxide (TiO2) nanomaterials have attracted considerable attention due to
their unusual optical, electronic and mechani-cal properties [7]. Various shapes of 1D TiO2 nanomaterials such as nanowires, nanowires, nanofibers, nanoribbons, nanobelts, and nanoneedles have been discovered in nanotechnology and used in different applications [8,9]. Aside from the inherent TiO2 characteristics, these materials show relatively faster charge carrier transfer, improved electron/hole separation, higher active surface area and photoactivity compared to 0D TiO2 nanoparticles [10,11]. Thanks to their large specific surface area, it is easy for photogenerated carriers to transfer along the axial direction [12]. Moreover, they have the ability to capture scattered light, which will increase light harvesting and easier charge carrier separation than TiO2 nanoparticles [13].

Many methods have been successfully established for the fabrication of nanostructured TiO2, including laser ablation, arc discharge, template-assisted synthesis which are inevitably associated with product contamination due to prior use of template or catalyst [14]. Consequently, there is renewed interest to synthesize nanostructured materials devoid of template intervention and some many methods such as solvothermal [15], hydrothermal [16, 17], sol-gel [18], chemical vapor deposition [19], and microwave [20] have been successful. Hydrothermal method is perhaps the the most powerful technique owing to its simplicity, cost-effective, high reactivity, easy control and environmentally safe route, and for these reasons it has been used to prepare a wide range of 1D TiO2 nanostructures including nanowires [21-24]. Unlike TiO2 nanowires, the TiOnanowires (TNWs) produced using strong alkali can withstand higher calcination temperature (> 500 C) without phase change to the anatase polymorph or any change in the nanowire structure [25]. In this work, the hydrothermal synthesis of TNWs using different alkali of different is reported to visualise the effect of these alkali on the product characteristics. The photoactivity of the resulting titanium dioxide was assessed based on the degradation of MB and optimized using response surface methodology.



Commercial TiO2 nanopowder (P25, 80% anatase, and 20% rutile) used as precursor material was purchased from Sigma-Aldrich. Methylene blue (MB, 97%) was purchased from Sigma-Aldrich. Potassium hydroxide (KOH, 90%), sodium hydroxide (NaOH, 98%), ammonium hydroxide solution (NH4OH, 30%), and hydrochloric acid (HCl, 37%v/v) were purchased from R & M Chemicals.

Preparation of TiO2 nanowires

To prepare TiO2 nanowires, 1.2 g of Degussa TiO2 was added into three beakers, each containing 20 ml of deionized water. The mixture was magnetically stirred for 30 min and sonicated for the same time period. Subsequently, 20 ml of 10 mg/l NaOH, KOH and NH4OH were separately added dropwise into the mixture under vigorous stirring, followed by sonication for 45 min. Each mixture was autoclaved at 180°C for 24 h. After cooling, white precipitates were filtered and washed several times with 0.1 mg/l HCl and deionized water until neutral pH. These precipitates were dried at 75 oC overnight and then calcined at 450 oC for 4 h. With NaOH and KOH, TiO2 nanowires were obtained (Na/TNW and K/TNW), while NH4OH gave titanium dioxide nanoparticles (NH/TNP).


The composition, structure, and morphologies of the synthesized titanium dioxides were analyzed using a NOVA NANOSEM 230 ultra high-resolution field emission scanning electron microscope (FE-SEM) hyphenated with energy dispersive x-ray (EDX) spectrometer, and a JEM-2100F field emission TEM. The X-ray diffraction (XRD) patterns of the synthesized photocatalysts were derived from a Shimadzu XRD-6000 X-ray diffractometer operated with a Cu Kα radiation (λ = 0.15406 nm) in the 2θ range of 20-80o. The Brunauer–Emmett–Teller (BET) method was used to determine the specific surface area and pore volume of the samples. Nitrogen adsorption-desorption experiments were performed using a Micromeritics 3Flex 1.02 instrument at 77.322 K. All the samples were degassed at 200 oC for 2 h before the experiment. The analysis of band gap was performed against a BaSO4 reference, using a Shimadzu UV-3600 UV-VIS-NIR spectrophotometer, within a scan range of 220-800 nm.

Photocatalytic experiments

The photocatalytic performance of the photocatalysts (Na/TNW, K/TNW, and NH/TNP) was evaluated by monitoring the percentage degradation of methylene blue (MB) for 60 min. Experiments were carried out in an immersion well photoreactor fitted with a new 3 W China model E14 GMY UV lamp (UV intensity = 450 μw/cm2, wavelength = 253 nm). In the photocatalytic experiments, a solution containing the desired amount of MB and catalyst was added to the photoreactor. Solution pH was adjusted using NaOH and H2SOand oxygen was continuously supplied to the system. Initially, the system was agitated in the dark for 30 min. At periodic intervals of experiment time, test samples were taken, filtered using cellulose nitrate membrane (0.45 μm), and absorbance was read at 664.1 nm using Perkin Elmer Lambda 35 UV-Vis spectrometer. The percentage degradation of the initial MB concentration was calculated using Eq.(1).


Where [MB]o is the initial methylene blue concentration, [MB]is the concentration of methylene blue at irradiation time t.

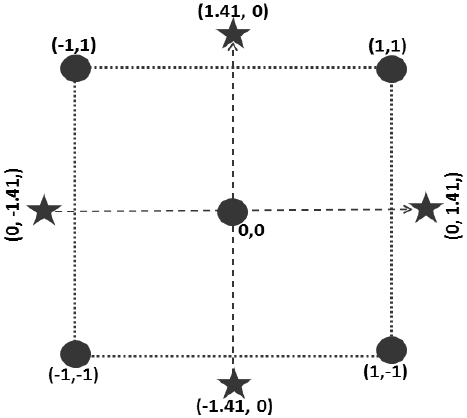

The effect of degradation variables of the MB in the presence of the titanium dioxide nanowires (Na/TNW and K/TNW) was studied for 60 min using a Box-Wilson two-factor central composite design (CCD). The independent parameters were TiO2 loading and initial concentration of MB. The CCD consists of three sets of points: center points, factorial points, and axial points. The experimental ranges and the levels (coded and uncoded) of the independent variables that were determined by the preliminary experiments are given in Table 1. The factorial points are located at the vertices of a square with coordinates which are a combination of -1(low value) and +1 (high value). The coordinate of the center points is 0,0. The axial or star points were augmented to the factorial at a distance ± α = 1.41 along with center point to make the design rotatable (as shown in Fig. 1). A total of 11 experiments were performed in this work, including four experiments at the factorial points, four experiments at the axial point, and three replications at central points, as governed by Eq. (2) [26].


where is the total number of experiments required, is the number of factors and nc is replications at central points. The degradation efficiency values obtained from the experiment (% D) were processed using a response surface module to obtain statistically valid predicted values. Kinetic studies were performed for 100 min and data was fitted to the pseudo-first-order integrated rate equation.


TEM, SEM and EDX Analysis

Fig. 2 shows the TEM image for TiO2 (precursor) and the NH/TNP derived from NH4OH hydrothermal treatment. It can be seen that the precursor exhibits aggregated particles with an average particle size of 21.8 nm (Fig. 2a) which upon hydrothermal treatment with the weak base, no significant change in the morphology was observed and no nanowire was formed. However, the particle size of the nanoparticles decreased to 18.6 nm (Fig. 2b). Differently, with NaOH and KOH ≈ 367nm long, ≈ 20 nm diameter titanium dioxide nanowires (Na/TNW) (Fig. 3) and ≈ 74 nm long, ≈ 5 nm diameter titanium dioxide nanowires (K/TNW) were formed, respectively (Fig. 4). From the TEM images, it was observed that the size and shape of TNTs strongly depend upon the strength of the alkali employed.

The morphology of the as-prepared titanium dioxides was imaged by field emission SEM
(Fig. 5). It can be seen from the images that the NH/TNP does not transform into a nanowire, rather, it appears as a collection of aggregated particles (Fig. 2a). However, the nanowires of the Na/TNW and K/TNW can readily be observed from Fig. 5b and Fig. 5c, respectively. Hence, the SEM results corroborate those of the TEM, revealing that only the strong bases may be used in the hydrothermal synthesis of nanowires. Nonetheless, even with the strong alkali, some of the resulting nanowires aggregated into bundles, a phenomenon similarly observed by Zhang et al. [27] while synthesizing TiO2 nanowires.

Compositional analysis of the as-prepared titanium dioxides was performed using energy dispersive x-ray (EDX) spectroscopy. Fig. 6 shows the EDX spectra of NH/TNP, Na/TNW and K/TNW. The EDX spectra of all the three samples show peaks corresponding solely to Ti and O. This observation rules out the presence of impurities in the obtained TiO2 nanowiresand nanoparticles.

Nitrogen adsorption-desorption measurements

The surface area and pore volume of the hydrothermal titania were estimated using the methods of Brunauer-Emmett-Teller (BET) and Barrett-Joyner-Halenda (BJH). Fig. 7 shows the N2 adsorption-desorption isotherm, the BET surface area plot (left inset) and the BJH adsorption cumulative pore volume curve (right inset) for P25, NH/TNP, Na/TNW, and K/TNW. The surface area and pore volume of bare P25 were found to be 54.85 m2/g and 0.14 cm3/g, and for NH/TNP, these properties increased to 77.66 m2/g and 0.26 cm3/g, respectively. More interestingly, the Na/TNW and for K/TNW exhibited the highest values of these parameters (143.42 m2/g and 0.46 cm3/g, and 228.34 m2/g and 0.62 cm3/g, respectively), corroborating the fact that the formation of nanowires from TiO2 particle by the alkali hydrothermal process is associated with significant increase in the surface area and pore volume of the material[22,28]. The Na/TNW (Fig. 7c) and K/TNW (Fig. 7d) showed type IV IUPAC isotherm [29]. Their mesoporosity is confirmed by the presence of hysteresis loops and obvious condensation/evaporation steps within partial pressure range of 0.6 to 0.9 [30] as it generally happens in nanotubular structures[22].

XRD analysis

In order to study the crystalline structures and phase compositions of the prepared catalysts, X-ray diffraction patterns were collected (Fig. 8). By the TEM results, the average crystallite size of P25 was found to be 21.29 nm which decreased to 18.51 nm for NH/TNP. The XRD peaks of the samples were studied by comparison with JCPDS-21-1272 and JCPDS-21-1276. From the figure, P25 and NH/TNP are observed to be more crystalline than the synthesized TNTs. As seen from the figure, P25 (the starting material) and NH/TNP show anatase peaks at 2θ (and planes) = 25.21o (101), 37.80o (004), 48.02 (200), 54.06o (105), 55.10o (211), 62.71o (204) and rutile peaks 2θ (and planes) = 27.44o (110), 36.09o (101), 41.21o (111), 56.68(220), 68.87o (310). The Na/TNW and K/TNW show anatase peaks at 2θ (and planes) = 37.82o (004), 48.06o (200), 53.96o (105), 62.73o (204) and rutile peak at 2θ (and planes) = 27.37o (110) and 41.16o (111). The diffraction pattern of the nanowires show mainly anatase polymorph, a little rutile and amorphous mix, with a clear disappearance of the prominent (101) anatase reflection as previously observed by other workers [31,32].

Band gap analysis

To estimate the band gap of the obtained catalysts, reflectance measurements were performed over wavelengths of 220–800 nm. The UV–Vis reflectance spectra are displayed in Fig. 9a while the band gap energies of the photocatalysts, estimated from the widely recommended plot of reflectance function [F(Rα)hv]2 versus hv [33] are displayed in Fig. 9b. The band-gap energy of P25, NH/TNP, Na/TNW, and K/TNW were calculated to be 3.25, 3.15, 3.04 and 2.94 eV respectively. The red shift as alkali strength is increased may be due to the narrowing of the slimming of the nanowires [34,34] as it may be associated with increased redox abilities for the production of photogenerated electron-hole pairs and reduced recombination effect in photocatalytic systems[35].

Effect of operating variables

The effect of TiO2 loading and the initial concentration of MB, and their impacts on the degradation of MB were investigated using the central composite design (CCD) approach and response data were analyzed using Design-Expert version 6.0.6. The results for degradation over Na/TNW and K/TNW fit quadratic model equations (3) and (4), respectively. Each coefficient of the variable in the equation estimates the change in mean response per unit increase in the associated independent variable when the other variable is held constant.

%D = 57.37 + 2.57[TiO2] – 15.7[TiO2]2 –

9.65[MB]2 (3)

%D = 65.83 + 3.03[MB] – 20.47 [TiO2]2 – 7.32[MB]– 9.08[TiO2][MB] (4)

The predicted MB degradation efficiencies (%D) in the presence of Na/TNW and K/TNW are presented in Table 2. It can be seen from the table for both catalysts that a good correlation exists between the experimental and predicted % degradation. This is affirmed by the linear normal plot of residuals (Fig. 10), in which normal probabilities correlate well with residuals. The residuals analysis accounts for the difference between the observed and the predicted response value, thus giving useful information about the model goodness of fit. The plot of normal probability of the residual for MB degradation (Fig.10) reveals a reasonably well-behaved residual of MB degradation as the majority of the points lie on a straight line. Hence the estimated effects are real and differ markedly from noise [36,26].

The statistical significance of the CCD model was assessed by ANOVA. A summary of the probability criteria and results of the F-test for Na/TNW and K/TNW assisted processes are tabulated in Table 3. The models’ Prob > F and those of the terms in the hierarchy of the model equation are less than 0.05 which shows that predicted degradation efficiencies are not influenced at 95 % confidence level. In an experiment, the minimum adequate precision desirable is a value > 4. In this study, the adequate precision for the Na/TNW and K/TNW models are 21.316 and 28.981 (Table A4 and A5 of supplementary materials), respectively. The models also show extremely low standard deviation from the mean degradation efficiency. This confirms that the obtained models can be successfully used to navigate the design space.

Numerical optimization was conducted to obtain the maximum performance of the variables necessary. The theoretical value of removable MB from reaction medium was 57.4827 % in presence of 0.616 g/l Na/TNW and 24.85 mg/l [MB], with desirability factor of 0.967, whereas and 66.1593 % [MB] can be removed in presence of 0.594 g/l K/TNW and 26.1 mg/l [MB], with desirability factor of 0.983, respectively.

The effects of catalyst loading and initial MB concentration are depicted by the three-dimensional response surfaces shown in Fig. 11. It can be seen that, for both Na/TNW (Fig. 11A) and K/TNW (Fig. 11B), there is synergy between [TiO2] and [MB] as they are increased towards 0.6 g/L and 20 mg/l (corresponding to the experimental optimum). The maximum degradation efficiency of 57.37 % for Na/TNW and 65.83% for K/TNW is reached in 60 min. The figure reveals that alternating any of the combinations of levels would result in low degradation efficiency. The coefficients of model terms, suggests that TiO2 loading has positive impact on degradation efficiency of MB for both Na/TNW and K/TNW while the initial MB concentration has negative effect for Na/TNW and positive effect for K/TNW. The model terms showed negative impact with respect to quadratic coefficient for both Na/TNW and K/TNW.

To validate the results obtained by the models and to confirm the models competence for predicting maximum degradation of MB, three experiments were conducted using the optimum conditions, which yielded an average maximum MB degradation of 56.98 % and 65.77 for Na/TNW and K/TNW respectively and the average values were calculated (predicted values) which is found to be 57.02 (for Na/TNW) and 65.80 (for K/TNW). The results show that it is feasible to predict and optimize the MB photocatalytic degradation using response surface methodology.

Photocatalytic kinetics

To obtain relevant information about the photocatalytic performance, it is necessary to perform experiments from which any possible contributions from direct photolysis or adsorptive removal can be excluded. In this regard, experiments were performed under UV irradiation in the absence of TiO2 and in the dark with TiO2 photocatalyst for 100 min and the results are displayed by Fig. 12. It can be seen from the figure that the least catalytic performance was obtained with P25 (77.12 %) while K/TNW was found to have the highest catalytic performance (98.87%). These results correlate well with the BET and UV-Vis results which showed better MB removal as surface area of K/TNW is increased or its band gap is decreased.

The degradation of MB carried out in this study (Fig. 13) was fitted into the pseudo-first-order kinetics represented by Eq. (6).


where [MB]t and [MB]o is the concentration (mg/l) at time t and when t = 0 respectively and k is the apparent reaction rate constant (expressed as min-1). A plot of ln([MO]o/[MO]t) versus t gave a straight line with slope = k with R square values > 0.85 (Fig. 13).


The effect of alkali strength on the hydrothermal growth of TiO2 nanowires was successfully investigated. The hydrothermal treatment with weak base does not affect the morphology of the TiO2 and does not form nanowires, but can result in its downsizing. However, the hydrothermal treatment of TiO2 with strong alkalis leads to TiO2 nanowires with relatively controllable, narrower diameter, higher surface area, and narrower band gap energy.


The authors are thankful to Universiti Putra Malaysia (UPM) where this work was largely conducted under the Mobility Program. Abubakar Hamisu gratefully acknowledges his sponsorship for PhD and a benchwork at UPM by the Kano State University of Technology through the Nigerian Tertiary Education Trust Fund (TETFUND) and the permission given by Bayero University, Kano.


The authors declare that there are no conflicts of interest regarding the publication of this manuscript.
