Co3O4 Nanoparticles : Synthesis, Characterization and Its Application as Performing Anode in Li-Ion Batteries

Document Type : Research Paper


1 Department of Chemistry, Faculty of Science, Golestan University, Gorgan, Iran

2 Institute of Physic of the Czech Academy of Sciences, v.v.i., Na Slovance 2, 182 21 Prague 8, Czech Republic

3 State Key Laboratory of Rare Earth Resource Utilization, Changchun Institute of Applied Chemistry, Chinese Academy of Sciences, Changchun 130022, China



In this research, a convenient, simple and rapid route for the preparation of Co3O4 nanoparticles using the calcination of Co(NO3)2∙6H2O at the presence of benzoic acid (1:1 weight ratio) is reported. Further, the as-prepared Co3O4 nanoparticles were characterized by X-ray powder diffraction (XRD) and transmission electron microscopy (TEM). XRD result confirmed the Co3O4 nanoparticles are pure phase and the average crystallite size for Co3O4 nanoparticles was found 77 nm. The TEM images reveal nanoparticles with size ranging from 50 to 100 nm, which is in conformity with the calculation of average crystallite sizes from XRD patterns. Furthermore, the prepared Co3O4 nanoparticles were investigated as an anode material for Li-ion batteries. Results showed that the Co3O4 nanoparticles exhibited excellent electrochemical performance and cycling stability, a capacity of 1127 mA h g-1 was obtained at 100 mAg-1 and the samples exhibited stable discharge behavior up to 130 cycles with high rate capability.



Recently, study of transition metal oxide (TMO) nanoparticles and nanocomposites as cathode [1-3] or anode [4-13] materials for rechargeable Li-ion batteries (LIB) has been one of the best hot research topics, because the preparation of TMO nanoparticles is often simple, low-cost and rapid. The transition metal oxide (TMO) nanoparticles as anode materials have also excellent electrochemical performance and cycling stability [1-13]. Nanoparticles of Co3O4 can be prepared by various techniques, i.e. solid-state thermal decomposition [14] or carbon assisted decomposition [15,16], and show variety of properties that are favorable in applications such as degradation of organic dye [14], oxidation of alcohols [15], selective oxidation of alcohols [16] and electrocatalytic oxidation of H2O2 [17]. Among various transition metal oxides studied for Li ion batteries, LIB’s with cobalt oxide nanoparticles as anode have higher energy density compared with the other energy storage devices [5-13]. Unfortunately, nanoparticles of Co3O4 show large volume changes during repeated lithiation and delithiation processes [9]. However, they have higher capacity (about 890 mA h g-1) [5-13] than graphite (370 mA h g-1). In recent years, various shapes of Co3O4 nanostructures such as nanoring, mesoporous, 3D nanofiber and nanofilms have been prepared and studied as anode materials extensively [5-13]. For example mesoporous Co3O4 network that has been prepared by Wen et alvia thermal decomposition of an amorphous metal complex exhibits excellent performance for Li storage [8]. Su et al. prepared Co3O4 hexagonal nanorings via treating Co-based metal organic frameworks [9]. Co3O4 hexagonal nanorings show the specific capacity of 1370 mA h g-1 after 30 cycles. Gurunathan et al. reported convenient synthesis route for preparation of Co3O4 hollow microsphere [10] that exhibited excellent electrochemical performance (915 mA h g-1) and cycling stability (350 cucles).

This study is a part of our ongoing effort to prepare transition metal oxide nanoparticles and investigated them as Li-ion batteries [18,19]. Herein, we report a convenient, simple and rapid method for preparation of Co3O4 nanoparticles using the calcination of Co(NO3)2∙6H2O at the presence of benzoic acid. Served as Li-ion battery anode, Co3O4 nanomaterials show high electrochemical performance.


All compounds used in this research were purchased from Merck Company and used without any purification. The XRD patterns were obtained on Empyrean powder diffractometer of PANalytical in Bragg-Brentano configuration equipped with a flat sample holder and PIXCel3D detector (Cu Kɑ radiation, λ = 1.5418 Å). TEM images were recorded with the transmission electron microscope Philips CM120 with a LaB6 cathode operating at 120 kV and equipped with CCD camera Olympus Veleta

Synthesis of Co3O4 nanoparticles

1 g of Co(NO3)2·6H2O and 1 g of benzoic acid were put into a crucible and ground together for 5 min. The mixture was then annealed at 600 ºC in air for 3 h. The black products were rinsed with water and finally dried at 65 ºC for 12 h.

Electrode preparation and electrochemical test method

The active Co3O4 material was mixed with carbon black and PVDF at a mass ratio of 70:15:15 to form slurry with NMP as solvent. The slurry was then spread onto Cu foil by doctor-blade, and dried at 80 °C for 12 h. The disc with diameter 1.53 cm was cut from dried Cu foil, and compressed under the pressure of 10 MPa to form a working electrode. The loading of active material on Cu foil was about 1 mg cm-2. Lithium metal was used as the counter and the reference electrode. The electrodes were assembled into a coin cell (CR2032) in an Ar-filled glovebox using Celgard 2400 as separator and 1 M LiPF6 in ethylene carbonate/dimethyl carbonate/diethyl carbonate (EC/DMC/DEC, 1:1:1 vol%) as electrolyte. A galvanostatic cycling test of these assembled half-cells was conducted on a LAND CT2001A system in the voltage range of 0.01-3.0 V (vs. Li+/Li) at different current densities.


XRD patterns

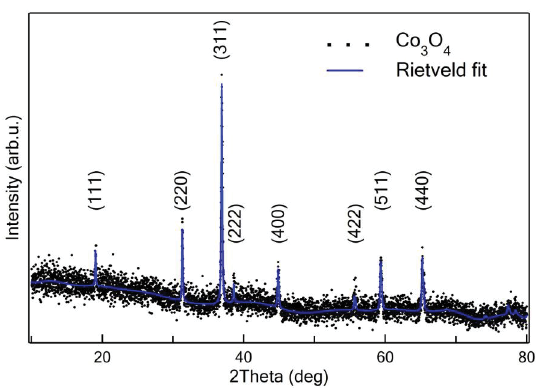

X-ray diffraction (XRD) pattern of Co3O4 nanoparticles is shown on Fig. 1. In this pattern, there are several peaks at 2θ ≈ 18.99º, 31.26º, 36.83º, 38.54º, 44.80º, 55.64º, 59.34º and 65.21º which indicates the spinel with cubic face centered structure of Co3O4 with standard diffraction data of card no. JCPDS = 01-080-1532. The structure was refined by Rietveld fit in crystallographic program Jana2006 [20] that confirmed the lattice parameter a = 8.085 Å. The size of crystallites was determined in the same program using fundamental parameter approach [21], which removed the instrumental part of the diffraction pattern by means of known geometry of the difractometer. The average crystallite size for Co3O4 nanoparticles was found 77 nm.

TEM images

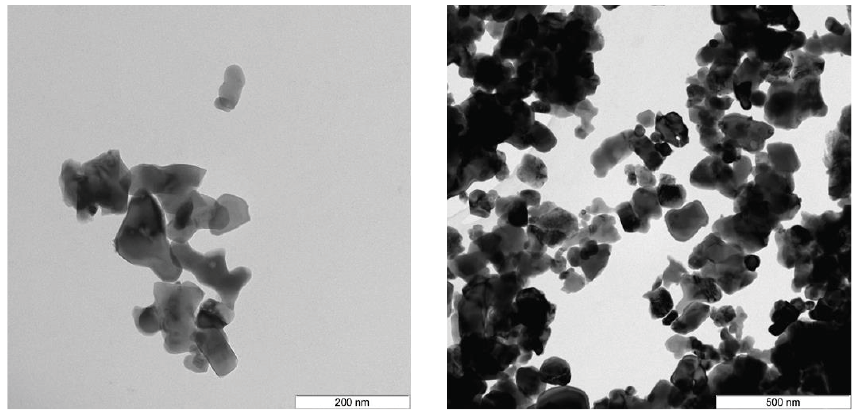

The morphology of Co3O4 nanoparticles was characterized by TEM. The Fig. 2 shows the TEM images of the sample prepared at 600 ºC. The images reveal nanoparticles with size ranging from 50 to 100 nm, which is in conformity with the calculation of average crystallite sizes from XRD patterns.

Electrochemical properties

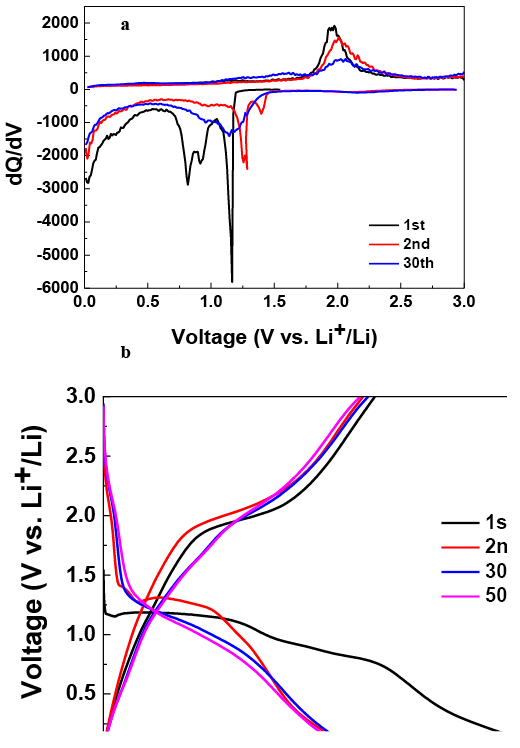

As shown in Fig. 3a, the reduction peak around 1.17, 0.92, 0.82 V in the first cycle can be associated with reduction of Co3+ → Co2+, Co2+ → Co and formation of Li2O and solid electrolyte interface (SEI) [5, 6]. The oxidation peak around ∼2.0 V can be attributed to the oxidation of Co → Co3O4 and decomposition of the SEI. In the following cycles, the redox peaks are well overlapped which means that Co3O4 anode has high cycling performance (Fig. 3b). Fig. 4 shows capacities at different current densities of 100–1000 mA g-1. Co3O4 sample shows 1st discharge capacity of 1996 mA h g-1 and charge capacity of 1127 mA h g-1 [22]. The irreversible capacity loss is caused by the formation of SEI and electrolyte decomposition. At current density of 1000 mA g-1, the discharge capacity is 380 mA h g-1. The high capacity of the Co3O4 electrodes can be attributed to high specific surface area which provides more active area that can react with Li+ ions [23,24]. The cycling performance was used to prove the stability of the as-formed samples. As shown in Fig. 4, the discharge capacity is 868 mA h g-1 after 130 charge-discharge cycles with capacity retention of 76%, compared with reversible capacity of 1145 mA h g-1. The decline of electrode performance may own to destroy of electrode materials or the change of electrode structure [25, 26].

The electrochemical impedance spectroscopy (EIS) was performed to show the resistance during electrochemical process [27]. Fig. 5 is the Nyquist plots of EIS with semicircle at high frequency and straight line at low frequency. The corresponding equivalent circuit is shown in inset of Fig. 5. The electrolyte resistance is 2.3 W. The charge transfer resistances are 130 and 907 W in first and second circuits. Two RC circuits show that two interfaces may exist in this electrochemical system, for example SEI. The straight line represents Warburg diffusion process.

These electrochemical properties of the as-prepared Co3O4 show that the good electrochemical performance with high storage capacity is comparable with the other previous works [9,11112,28-29]. In Table 1, previous reports about Co3O4 based Li-ion batteries with different morphology are compared.


In summary, Li-ion battery anodes based on Co3O4 nanoparticles show better electrochemical performance. The 1st discharge capacity was 1996 mAhg-1 and charge capacity was 1127 mA h g-1. Also, Co3O4 sample shows decent cycle stability with specific capacities of about 868 mA h g-1 at 100 mA g-1 after 130 charge-discharge cycles. The high capacity of the Co3O4 electrodes can be attributed to high specific surface area which provides more active area that can react with Li+ ions.
