The Study of Photocatalytic Behavior of Carbon-ZnS Nanocomposites Prepared with Microwave Co- precipitation Method

Document Type : Research Paper


1 Mathematics and physics department, Arak Branch, Islamic Azad University, Arak, Iran

2 Department of Science, Arak University of Technology, Arak, Iran

3 Arak Azad University



We prepared samples including nanoparticles of ZnS via co-precipitation method in room temperature and with microwave heating using water as a “green” solvent. The procedure was repeated with various natural surfactants. XRD and SEM analysis was performed to determine the nanostructural and morphologic characteristics of nanoparticles. The mean diameter less than 100 nm for ZnS particles showed that there was well-formed pure nanostructure. SEM analysis disclosed that temperature and type of surfactant will affect the nanostructures and so we can control the nanostructure and particle size with changing such parameters. With combining of pure Carbon and ZnS nanoparticles in various proportions, Carbon - ZnS nanocomposites was prepared using microwave heating. SEM and FT-IR analysis was performed on these nanocomposites to compare them with pure Carbon and ZnS nanoparticles. We also assessed the photocatalytic potential of prepared nanocomposites using acidic and neutral pH methyl orange and Congo red solutions under UV- IR radiation. This study confirms that these nanocomposites can be used as photo-catalysts for water refinery in home and industries.



In recent years these has been increasing attention toward toxic and non-toxic pollutants that contaminating water resources [1-4]. Scientists are attempting to decontaminate water by photo-catalysts [5,6]. Semiconductor photo-catalysts are a good candidate for water refinery because they are chemically stable, with high efficiency and low cast and they are easily available [7].

 Bulk ZnS is a paired semiconductor with wide energy gap (~ 3.6 eV), high refractive index and high transmittance in the visible range [1,8-10]. ZnS can produce electron-hole pairs under light radiation and act as a photo-catalyst by releasing active hydrogen  radicals [11-14]. The size of ZnS particles severely affects the energy gap and surface parameters such as surface areas and surface defects [1,15,16]. Nowadays there is increasing attention toward ZnS nanoparticles because it has numerous applications in new technologies from optoelectronics to photo-catalysts.

 There has been some studies to optimize synthetic conditions by changing various experimental parameters such as heating conditions and various surfactants in different concentrations to control the morphology and size of particles in ZnS nanostructures [15,17,18].

 Researchers have used several methods for preparation of ZnS nanoparticles, such as hydrothermal method [7,19], chemical vapor deposition [20], co-precipitation [21] and thermal decomposition [22]. There are several attempts to increase the efficiency and to accommodate the procedures with environmental concerns [8].

 In recent years the researchers used microwave assisted co- precipitation  method particles in low temperatures [9,23-25]. There are some data that show inclusion of non-metal compounds in ZnS nanoparticles  can form an intermediate energy level in energy gap so it will increase the capacity of light absorption in range. Carbon is one of the best substances for enhancing the photocatalytic capacity under visible light radiation. When the light is radiating, the electrons will be upgraded to the Carbon nanoparticles on surface of crystals, so the separation between photoelectrons and holes increases and they would not be re- combined[26-29].

 In our research, at first we synthesized Zinc sulphide nanoparticles using co-precipitation method in room temperature and with microwave heating with or without the presence of a surfactant.We studied the effect of heating and the presence of surfactants on nanostructure and nanoparticle size. In second step, we used various proportions of pure Carbon for synthesize of nanocomposites in conjunction with Zinc sulphide nano particles. To determine the photocatalytic power of nanocomposites, we used the color change under UV-IR radiation of methyl orange and Congo red in acidic and neutral pH.



Materials and devices

In this study we used Zn(OAC)2, Na2S, C2H5O2, C6H12O6, [C6(H2O)5]6, NaC12H25SO4 from Merck company and distilled water from Tehran Kimia-Acid company.

 Nanoparticles were synthesized by co-precipitation in room temperature and also by heating with simple kitchen microwave oven from Panasonic company with power of 600 Watt.

 The synthesize of nanoparticles were repeated in room temperature and microwave in the presence of various surfactants such as SDS, gelatin, glucose and starch. To determine the structural characterization of samples, we used XRD analysis with CuKα (λ = 1.5418 Å) in the range of 2θ= 10-80֯. The SEM images were obtained by LEO instrument model 1455VP. Infrared spectrophotometer was used to determine the spectrum of pure ZnS nanoparticles, pure Carbon and Carbon-ZnS nanocomposites.

 Photocatalytic behavior of prepared nanocomposites were assessed by methyl-orange and Congo red in neutral and acidic pH under UV-IR radiation and the change of colors with respect to time were measured.

 Zinc Sulfide nanoparticles synthesize

0.5 gr. of  Zn(OAC)2 were dissolved in 100 ml distilled water and stirred by magnetic stirren to produce a clear solution. We prepared similar solution of 0.18 gr.  Na2S in 100 ml distilled water by the same manner. The first solution had pH equal to 7 and the second was acidic. We put the Zinc acetate on a magnetic stirren and Na2S solution was added about 10 ml every 1 min. and after that, it remained on stirren for additional 10 minutes to complete the solving process. The solution remained for several minutes on table to start the precipitation. Then we centrifuged the sample and dried it in oven. The resultant sample was used as a control sample in our study. To determine the effect of heating on nanostructure of the products, we used microwave heating during the addition of Na2S solution, then all of products were centrifuged and dried.


Zinc sulfide nanoparticles synthesize with various surfactants

0.5 gr. of  Zn(OAC)2 and 0.1 gr. SDS as surfactant were dissolved in 50 ml distilled water and stirred by magnetic stirren. Previously prepared Na2S was added in 5 phases and between them we heated the solution in microwave oven for 15 seconds. Total heating time was 75 seconds. Then the precipitation was done by centrifugation and heat drying. In another experience total volume of 50 cc Na2S was added at once to the Zinc acetate solution and then heated for 75 sec. in microwave oven.

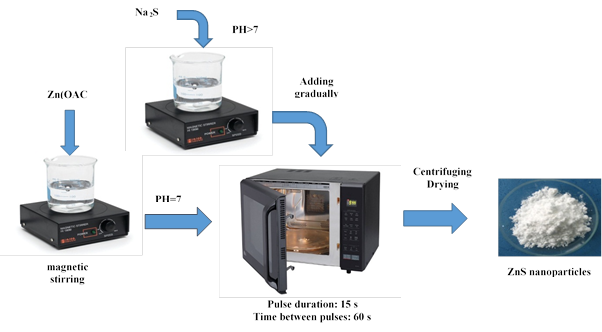

 We repeated the same synthetic procedure with the addition of 0.7 gr. of starch, gelatin and glucose. And also the same procedures repeated with addition of surfactants in room temperature to determine the effect of heating on the nanostructure of products. Figure (1) shows the practical algorithm how to synthesize Zinc sulphide nanoparticles with or without use of various surfactants.


Prepare of Carbon-ZnS nanocomposites

To produce pure Carbon, we burned about 1 gr. of organic substances such as   starch, glucose or gelatin in 300° c heating oven. Then various amounts of Carbon were combined with constant amount of ZnS to produce various nanocomposites. To prepare ZnS solution, 0,25 gr. Zinc acetate was added to 100 ml distilled water on a magnetic stirren. Then 0.3 gr. Carbon was added and waiting about 40 min. to be completely dissolved and 0.09 gr. Na2S in 100 ml D.W. was added gradually between heating cycles in microwave oven. Each heating cycle was about 15 seconds. Then precipitation was done by centrifugation and heat drying. We repeated the procedure by 0.15 gr. and 0.53 gr. of Carbon. Figure (2) shows the schematic diagram for experimental setup for nanocomposite preparation used in the precipitation procedure.





XRD analysis results

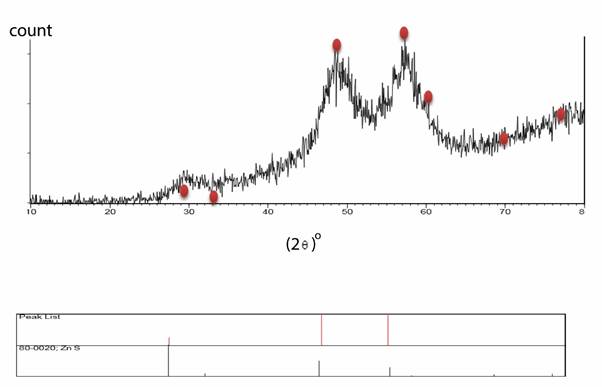

Fig. (3) discloses XRD curve of control sample of ZnS nanoparticles. The XRD pattern   reveals the typical diffraction pattern of pure cubic phase with F-43m space group which is consistent of pure Zinc sulphide.

 Fig. (4) shows diffraction pattern of X-rays from Carbon-ZnS nanocomposites. As seen the small peaks are related to Zinc sulphide nanoparticles. The presence of narrow and pointed peaks in comparison with fig. (3) indicates nanoparticles in nanocomposite are larger than nanoparticles in control sample.

 The equation of Scherrer can determine the size of crystallines :

 In this equation, β is the width of the observed diffraction peak at its half maximum intensity (FWHM), K is the shape factor, which takes a value of about 0.9, and λ is the X-ray wavelength (CuKα radiation, equals to 0.154 nm). Table 1 summarizes the size of the crystallines for each peak of XRD curves. The last line shows the mean crystalline size of sample.


Generally, when the nucleation and growth comes to a balance, nanoparticles will reach to their maximum size. With change in primary circumstances of synthesize, one could change the nanostructure and properties of the samples. So the properties could be controlled regarding the usage of products.


SEM analysis of samples

 Fig. (5) discloses the results of SEM analysis for sample containing Zinc sulphide which prepared in room temperature and assigned as control sample. As seen, nanoparticles of Zinc sulphide have mean diameter of 48 nm. When comparing fig. (5) with fig. (6) which is related to SEM analysis of ZnS particles that prepared using microwave heating, one could see more uniform surface with reduced particles size (mean diameter of 36 nm) in fig. (6).



 Figs. (7) and (8) show the effect of presence of SDS as surfactant in preparation of Zinc sulphide nanoparticles in room temperature and microwave respectively which were obtained from SEM analysis. Mean diameter of nanoparticles were 44 and 42 nm respectively, which are very near to each other, but the particles prepared by microwave heating have more uniform size and smooth surface. Increased surface diffusion of particles as a result of increased temperature may be the reason for this phenomenon.

 Figs. (9), (10) and (11) show the results of SEM analysis of samples prepared by microwave heating in the presence of organic surfactants of starch, gelatin and glucose respectively. Mean particle diameter were respectively 53, 49 and 53 nm. Particles formed by starch are more pleomorphic and whereas particles formed by glucose and especially gelatin are more uniform.




 We used pure Carbon to make Carbon-Zinc sulphide nanocomposites. Fig. (12) shows the SEM images of pure Carbon nanoparticles. It seems that there is a mixture of small and large particles in a spongy architecture with mean particle diameter of 74 nm.


 Finally, fig (13) discloses SEM images of prepared Carbon-Zinc sulphide nanocomposite in microwave. As seen, the effect of microwave heating is the presence of reduced particles diameter with uniform surface. The mean diameter of particles is 52 nm.

Also for the samples prepared using surfactants, the best results come from SDS surfactant.

The average size less than 100 nm for particles confirms that all of our samples’  nanostructure  included nanoparticles.

 Table (2) summarizes the results of analysis of samples containing ZnS nanoparticles and Carbon-ZnS nanocomposite.

FT-IR spectrum of samples

FT-IR spectrum of the synthesized sample ZnS nanoparticles is shown in fig. (14). The peaks in 440,482 and 510 cm-1 reveal the stretching band between metal and Sulphur and the weak bands between 3300-3500 cm-1 are attributed O-H stretching mode due to moisture absorption on surface of nanoparticles. The band between 937-1010 cm-1 is assigned to C-O band that related to presence of acetate in primary substance.

 FT-IR spectrum of pure Carbon nanoparticles are seen in fig. (15). The band at 3441 cm-1 was assigned to O –H stretching vibration mode and the band at 1610 and 1713 cm-1 was assigned to the C=O stretching vibration  mode. Also the narrow band at 1384 cm-1 is related to the resonance between C-O and C=O modes.

 Finally, fig. (16) reveals FT-IR spectrum of Carbon-Zinc sulphide nanocomposite. As it mentioned, the weak bands between 3300-3500 cm-1 are attributed O-H stretching mode and absorption peaks between 400-600 cm-1 reveal the stretching band between metal and Sulphur. The bands at 937 and 990 cm-1 is assigned to C-O band.

Photocatalytic property of Carbon-ZnS nanocomposite

Photocatalytic decontamination is one of the best methods due to absence of environmental side effects. To analyze the photocatalytic behavior of prepared nanocomposites, we used methyl orange and Congo red as natural contaminant. These dyes are widely used in photocatalytic researches due to their structural stability.

 Maximum absorption peaks (λmax) of these organic dyes that were used for degradation under UV light are obtained from UV-vis absorption spectra and were confirmed by scientific literature. The photo-catalytic activity of the nanocomposite's particles was evaluated by monitoring the degradation of organic dyes in acid and neutral pH in aqueous solutions, under UV-IR radiation. The changes in the concentration of dye are illustrated in fig. (17). As time increase; more and more dyes are adsorbed on the nanoparticles catalyst, until the absorption peaks (λmax) of methyl orange and Congo red decrease and almost vanish around 60 min. The dyes concentration decreased rapidly with increasing UV-IR radiation time and content of nanocomposite. Fig. (18) shows color degradation due to addition of Carbon-ZnS nanocomposite to neutral methyl orange and Congo red solutions with neutral and acidic pH under UV-IR radiation.




We synthesized various samples including Zinc sulphide plus different 5 organic surfactants with co-precipitation method in RT and under microwave heating. SEM analysis documents formation of nanostructures due to presence of mean particle diameter < 100 nm. Heating with microwave causes formation of more regular and smaller nanoparticles. Also it was evident that SDS has most powerful effect to enhance nanostructure formation and decreasing particles size of ZnS.

 Also with addition of various proportions of pure Carbon to Zinc sulphide using microwave heating, it was possible to produce nanocomposites as documented by SEM analysis.

 The photo-catalytic activity of the nanocomposite's particles was evaluated by monitoring the degradation of organic dyes in acidic and neutral pH in aqueous solutions, under UV-IR radiation. The dyes concentration decreased rapidly with increasing UV-IR radiation time and content of nanocomposite. This result showed that these nanocomposites are powerful tools for decontamination of household and industrial wastewater.




     The authors declare that there is no conflict of interests regarding the publication of this manuscript.
